Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CT
  • Model Number: CTKPS09-12
  • Application: Home Appliance
  • Keypad Button Material: Metal
  • Protection grade: IP68
  • application: ATM,Self-terminal,industry machine,kiosk,telephone entry
  • keypad layout: matrix 3x4
  • material of panel: stainless steel
  • life span: 2000000 cycles
  • key travel: 0.45mm
  • material of key: stainless steel
  • Key Mechanism: Metal dome
  • Number of keys: 12
  • Place of original: Zhejiang

Packaging & Delivery

Packaging Details metal keypads carton size: 410*250*240mm
It can be cusotmized according to customer's requriements.
Product description

Quick Details:

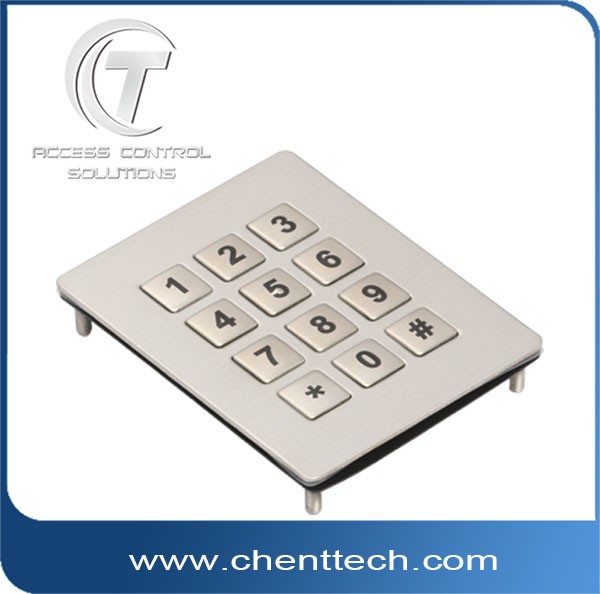

1. 12 Keys Vandal proof IP65 stainless steel, Dot matrix keypad.metal keypads

2. carbon-on-gold key switch technology.numeric keypads

3. Front mounting or rear mounting is available.matrix keypads

Descriptions:

1. 1keys IP68 dynamic compact format vandal proof stainless steel Industrial numeric keypad

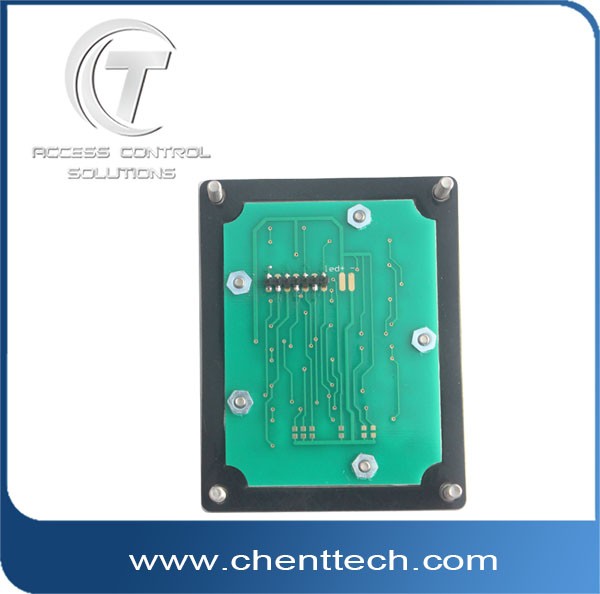

 with industrial PCB electronics. 3x4 keypad

2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely

good tactile feeling for fast and accurate data input without any noise.metal keypad 3x4

3. Ease of installation and maintenance.telephone keypad

4.letter and symbol can be customized according to customers requirements.IP68 keypad

Special Features:

1. Imposing stainless steel design, specially designed keypad meet the highest demands with regard to design, functionality

longevity and high protection level.access control keypad

2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under

 extreme climatic conditions, water proof/dirt proof, operation under hostile environments. intercome phone keypad

Applications:

A: unsupervised or semi -supervised positions of varied access control systems,security system, household applications.

B:Industry application.public telephone keypad

C: shopping malls, hotels, airports, railway stations and other public areas,  stainless steel keypad

D: Inquiry self-service terminal ,Ticket vending machines, renting,gas stations, Internet public telephone ,video telephone etc.

Specifications:

MECHANICAL DATA

keys

12 keys

Switching material

carbon-on-Gold key switch technology PCB

Actuation Force

0.6 N+/-0.1N (pressure point)

Frame/keys materials

Superloy

Dimensions

73mm x 93mm (L x W )

G.W.

230g approx

Key top style

Protuberant rectangular keys, laser engraved & etched legends on keys are available

Key Size

12.5mm x 12.5mm

Life span

more than 2000,000 cycles



ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20 to +75

Storage temperature

-35 to +85

Operating RH

30-90%RH

Atmospheric pressure

60-106Kpa



RELIABILITY

Protection Level

IP65(front panel)

Vandal resistant

IK09



Related keypad

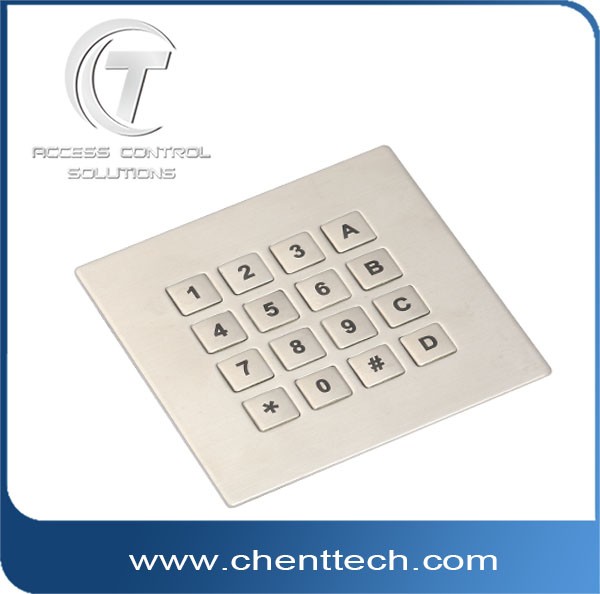

Keypad with 16 keys, for more please find the link:

http://preview.alibaba.com/product/60335227877-802136019/IP68_waterproof_metal_arabic_keyboard_with_16_flat_keys.html

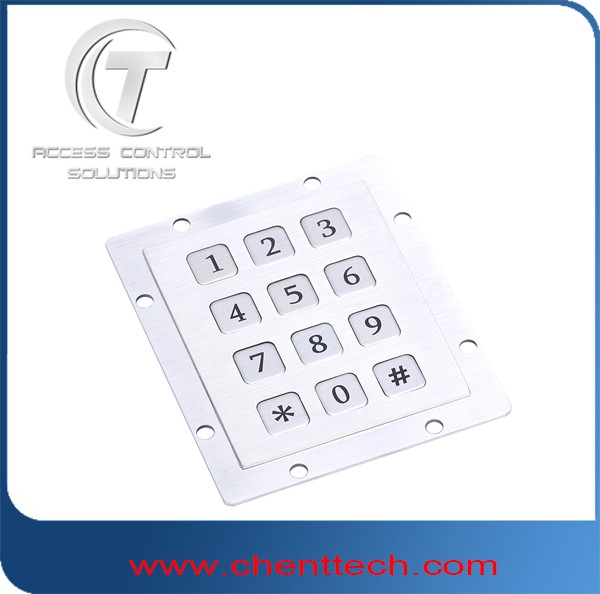

Keypad with 12 keys ,rear mounted



http://preview.alibaba.com/product/60355497512-802136019/IP65_brushed_metal_access_control_matrix_vandal_resistance_keypad.html

Company Information

ChenTeng Electronics Technologies Co.,Ltd. was established in 2010. We are a professional manufacturer and exporter, who  specializes in R&D, production and sales of access control keypad, Industrial keypad,PC keyboard and ATM keypad. Our products are used in access control system, telecom network equipments, vending machine,Kiosk, Info Terminal and industrial phone set, ect. The company locates in Ningbo ,with the convenient transportation access from Ningbo international airport and high speed rail way to shenzhen ,shanghai, suzhou and nanjing. The Company is armed with advanced precision mold manufacturing equipment, highspeed hardware pressing equipment, precision plastic injection equipment,automatic assembly line and inspection/testing devices. The company adheres to the business principle of "technology for development and quality for existence", and provides customers with quality products and exceptional service based on its years of experience in R&D, production and management, great technical strength and the mature quality management system.

Our Advantages

With our own stamping department,injection moulding department and keypad assembing department.

We can provide a whole series of products and service.Also we have our own R&D department, can design keypad according to your requirements if you provide us sample or drawing.

It is a great appreciate  to contact us to customized any keypad & keyboard in our plant.

FAQ

1. Q: How long is the warranty period?

A: 12 months. metalnumeric keypad

2. Q: Who will pay the postage of the returns?

A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)   metal keypad  metal keypad

3. Q: How to pay?

A: TT,L/C,Paypal and western Union  metal keypad  metal keypad

4. Q: How to pay the deposit?

A: 50% in advance and balance before shipping.   metal keypad  metal keypad

5. Q: How to ensure the quality of the products?

A: Every piece of our products will be under strict and repeat tests before delivery.And representative inspector will be welcomed.     numeric keypadmetal keypad

6. Q: How is the shipping?

A: 1000 pcs or more within 30 days and samples will be shipped within 2-5 days. metal keypad

7. Q: How will you deliver the products?

A: We can deliver by express, by sea, by air or at you request. etal keypad

8. Q: When will I get my products after delivery?

A: It varies from different places. We will recommend the best and fastest type of shipping for you.  numeric keypadmetal keypad

9. Q: How is the inventory of your company?

A: We keep a large stock of goods to ensure our prompt delivery.

10.Q: Do you accept customized keypad ?

A: Yes, OEM and ODM are available for us, Our R&D team work in this in this area with 6 years..

Packing & shiping

Keypad package:

keypad carton size : 410*250*240mm

Package can be designed according to customers' requirements.

Shipping terms:

Base on cusotmers' demands to choose the most economical shipping terms.

Suggestion:

Sample will be shipped by express, for mass products will be shipped by air or by sea.

We also have a strong cooperation with DHL,UPS,FEDEX,TNT and EMS
